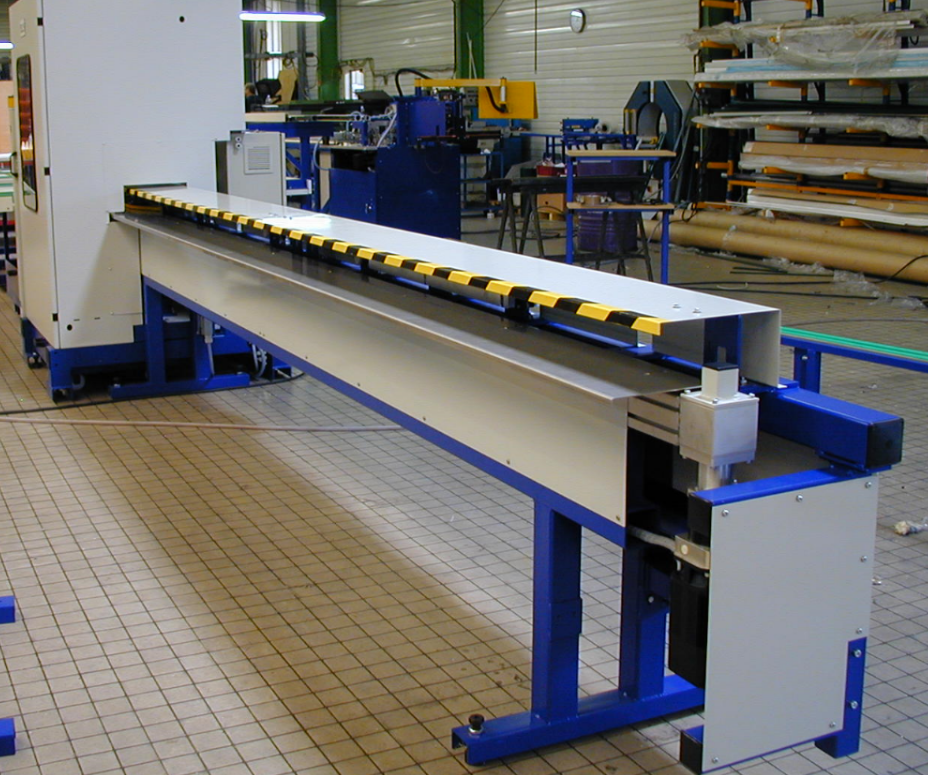

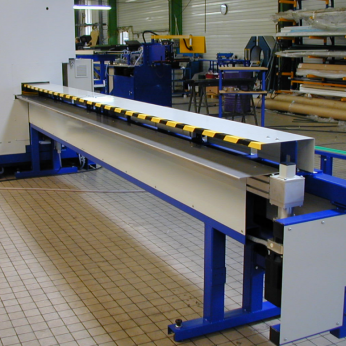

TB2S : Automatic bench for drilling and cutting side rails
Automatic machine that cuts to length and drills all the holes in the side rails The machine performs a franking, measurs, cuts to length and drills simultaneously in Ø 10 mm and Ø 5 mm. The amount of holes, as well as the intervals between the holes, are determined automatically, according to the length of the side rails, the operator recovers the sawn and drilled slide on the output table, the machine can work all types of rails, with a simple and quick passage from one type to another.
Technical Characteristics
Dimensions length*width*depth (mm) : 12 000*2 000*1 800
Power : 4 kW
2 electric drilling heads, with converging heads
Advantages
High productivity, complete machining in a single process.
Ease of use and rapidity.
Reference faces taken up in milling for a rigorous geometry.
Universal clamp that allows you to switch from one slide to the other instantly, ideal for diffuser production.
No burrs, no risk of scratches.
Video
https://youtu.be/H5yyHJePqLw
Areas of application
Manufacturers of roller shutters and all types of sun protection (blinds, screens...)
Optional
Exists with sliding work in pairs: see TB4S
Automatic charger 15 positions
